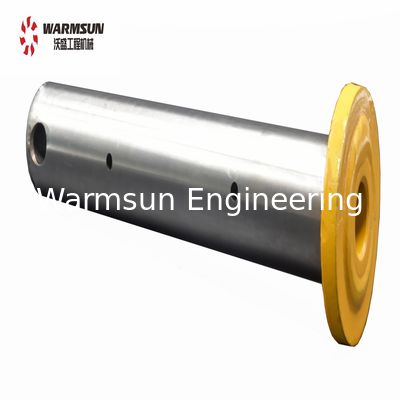

40HRC SY195C.3.8 100mm Excavator Bucket Pins 11696987

Place of Origin China
Brand Name Wearproof
Certification ISO
Model Number SY195C.3.8
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details wrapping
Delivery Time 1-3 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 2500 pcs per weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Part Name 13.250kg SY195C.3.8 Excavator Bucket Pins For Sany SY215 Excavators Bucket Connection Part Number 11696987
Model Number SY195C.3.8 Pin Weight 13.250kg
Measure 100×100×450mm Use Range SY215 Excavator
High Light

SY195C.3.8 excavator bucket pins


100mm excavator bucket pins


11696987 digger bucket pins

Leave a Message
Product Description

13.250kg SY195C.3.8 Excavator Bucket Pins For SY215 Excavators Bucket Connection


Product Details


13.250kg SY195C.3.8 Excavator Bucket Pins For SY215 Excavators Bucket Connection, is a kind of non-standardized fastener, which can be fixed statically or connected with the connected part in relative motion. Pin is a combination of various kinds of fittings. For example, chain, chain all need pin shaft.


SY195C.3.8 Excavator Bucket Pin has 7 methods for manufacture: cutting, forging, rough machining, quenching and high temperature tempering treatment, finishing, surface hardening, low temperature tempering treatment, grinding.




we can supply brand new, rebuild and used excavtor spare parts for our customer to choose

we can supply any product according to your Part Number

we can ensure the product we provide with most competitive price and high quality

we can ensure our sale and service teams shows our high values of commitment, communication, expertise and trustworthy decision making from your first e-mail to the final delivery, and ask feedback of the service and product from you.


Product Parameters


Title 13.250kg SY195C.3.8 Excavator Bucket Pins For SY215 Excavators Bucket Connection Brand Wearproof
Part Number 11696987 Model Number SY195C.3.8
Name excavator pins


42 Cr steel
Part Size


Serviceable Range SY215 Excavator

a flash of silver

Origin China


357 pcs a day Port  Guangzhou
Service Time 365 days Pin Sample available



Pin Weight



40HRC SY195C.3.8 100mm Excavator Bucket Pins 11696987 0

Product Processes


There are 7 processes for making a bucket pin

1.cutting ——2.forging ——3.rough machining ——4.quenching and high temperature tempering treatment ——5.finishing ——6.surface hardening, low temperature tempering treatment ——7.grinding



Detailed Procedure


1.Rough Machining


When put steel into the furnace, try to put the round steel of similar thickness into a furnace. The distance between the round steel and the heating resistance wire on both sides is more than 80mm, and the distance between the back end of the round steel and the furnace wall is more than 150mm. If the front end of the round steel is more than 200mm from the furnace door, if the thick and thin round steel is mixed, according to the principle, thin axis will be put on the top and thick axis will be put on the bottom.




When it comes out of the oven, the thin axis comes out first, then the thick axis. Remove the shaft from the oven and soak it vertically in the oil, stirring constantly. When the temperature drops to 150℃ ~ 250℃, remove the shaft from the oil and cool it. The quenched workpiece is reloaded into the furnace, raise the temperature to 620℃ for 2 hours. Finaly, cool the part.


Packing and Shipping


For pins and bushings, a plastic bubble film and a cardboard box are provided to pack goods, which is easy to transport and helps to keep the products intact during transportation.


For leadtime, 10000 pieces are produced per month, which is a large stocks.


For shipping time, every goods will be sent to customers in time. Although shipping time is up to express company, we know an approximate time from different express company, and we will count it into the delivery time. So, our customers could get a precise deadline.




20- year experience in construction machinery industry

service is attentive

no customer complaints, no bad comments

goods can be returned or replaced without any reason within 7 days.

goods can be replaced within 15 days.

warranty is one year.

goods has samples.



Q1: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. Warmsun is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.


Q2: Hong long is your delivery time?
A: It depends on the quantity. For a big order, the time is generally 10-25 days after order. For a small order, customers can get goods at once.


Q3: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed. For some goods that are inconvenient to transport, the express costs will be burdened by the customer


Q4: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
