Pump 60323239 P3145L00C1C30TA30V50S1B1E Plunger For SANY Crane For Parker Hydraulic Pump

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Pump 60323239 P3145L00C1C30TA30V50S1B1E Plunger For SANY Crane For Parker Hydraulic Pump Assembly | Packing Dimension | 470*450*420 Mm |
---|---|---|---|
Application | SANY Crane | Model Number | P3145L00C1C30TA30V50S1B1E |
Part Number | 60323239 | Packing Weight | 86 Kg |
Highlight | SANY Crane Pump Plunger,SANY Crane Pump Plunger,Parker Hydraulic Pump Plunger |

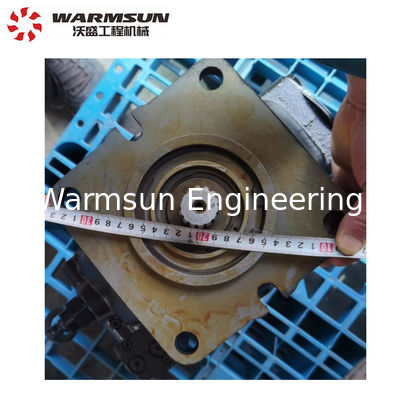

Pump 60323239 P3145L00C1C30TA30V50S1B1E Plunger For SANY Crane For Parker Hydraulic Pump Assembly
Product Details
Recommended installation and operation and installation procedures
Oil pressure does not exceed 15bar (217PSI)
Filtration: oil pollution is limited to ISO4406 code 20/18/14
Temperature range: Usually the temperature of the working oil in the tank is 0°C to 70°C (+32 to +158)
The maximum working temperature of casing leakage oil is 90°C (+194)
Cold start temperature -40°C (+40)
Maximum speed: 2500RPM
Maximum pressure: 300bar
Flow: 362.51/min (958GPM@2500RPM
Oil inlet conditions: use petroleum-based oil at the highest rated speed, not less than 0.88bar (5.8In-Hg) (vacuum degree). Enter
Oil: The working viscosity range is between 15-40 field cSt, and the hydraulic oil should have the characteristics of anti-wear, anti-rust and anti-oxidation
Shell leakage: 12L/min (3.2GPM) at 320bar, the maximum back pressure is 1bar (145PSI)
Product Parameters
Product Name | 60323239 Plunger Pump P3145L00C1C30TA30V50S1B1E For Parker Pump For SANY Crane | Brand Name | Warmsun |
Part Number | 60323239 | Model Number | P3145L00C1C30TA30V50S1B1E |
Part Type |
Hydraulic Parts |
Product Material | steel |
Part Size | 470*450*420 mm | Applicable Industries | Sany crane |
Product Color | Black | Origin | China |
Supply Ability | 10000 pieces a month | Port of Dispatch | Guangzhou |
Part Features | Easy flow adjustment | Samples | yes |
MOQ | 1 piece |
Weight |
86 kg |
Product Recommend
10021958 | Auxiliary hoist box body QY100.2.4.5 |
10021964 | Support QY100.2.4.6-1 |
10021968 | Roller Assembly, Guide QY100.2.4.6 |
10021992 | Bracket assemblyHQC5290JB.6.5B |
10021995 | Rotating axleQY100.2.4.9-1 |
10021996 | Clip |
10022021 | Water inlet plastic tube of radiator |
10022023 | Rope supportQY100.2.4.9 |
10022104 | Profile welding diagram 2 |
10022282 | Transition adaptor of front air chamber |
10022305 | slide wheel QY100.1.6-2 |
10022334 | Five-section boom |
10022348 | HQC5290JB.15A |
10022356 | Ear Plate |
10022358 | Circular ironQY26A.10B.3.1.1-1 |
10022373 | Weight, A2B QY26A.10B.3.1.1 |
10022375 | plateQY100.1.1.3-1 |
10022380 | Weight Assembly, A2B QY26A.10B.3.1 |
10022485 | one-section boom structure QY100.1.1 |
10022554 | turntable lock QY100.2.2 |
10022571 | Pivot shaft of hanging boom QY100.2-1 |
10022582 | Hanging boom shaft baffle QY100.2-2 |
10022588 | Variable-amplitude hinge joint shaft QY1 |
10022628 | 3-section boom structure |
10022723 | plate QY100.1.2.3-3 |
10022753 | 2nd boom section |
10022838 | Four-section boom |
Packing and Shipping
For parts, a plastic bubble film and a cardboard box are provided to pack goods, which is easy to transport and helps to keep the products intact during transportation.
For leadtime, 10000 pieces are produced per month, which is a large stocks.
For shipping time, every goods will be sent to customers in time. Although shipping time is up to express company, we know an approximate time from different express company, and we will count it into the delivery time. So, our customers could get a precise deadline.
FAQ
Q1: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. Warmsun is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q2: Hong long is your delivery time?
A: It depends on the quantity. For a big order, the time is generally 10-25 days after order. For a small order, customers can get goods at once.
Q3: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed. For some goods that are inconvenient to transport, the express costs will be burdened by the customer
Q4: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
